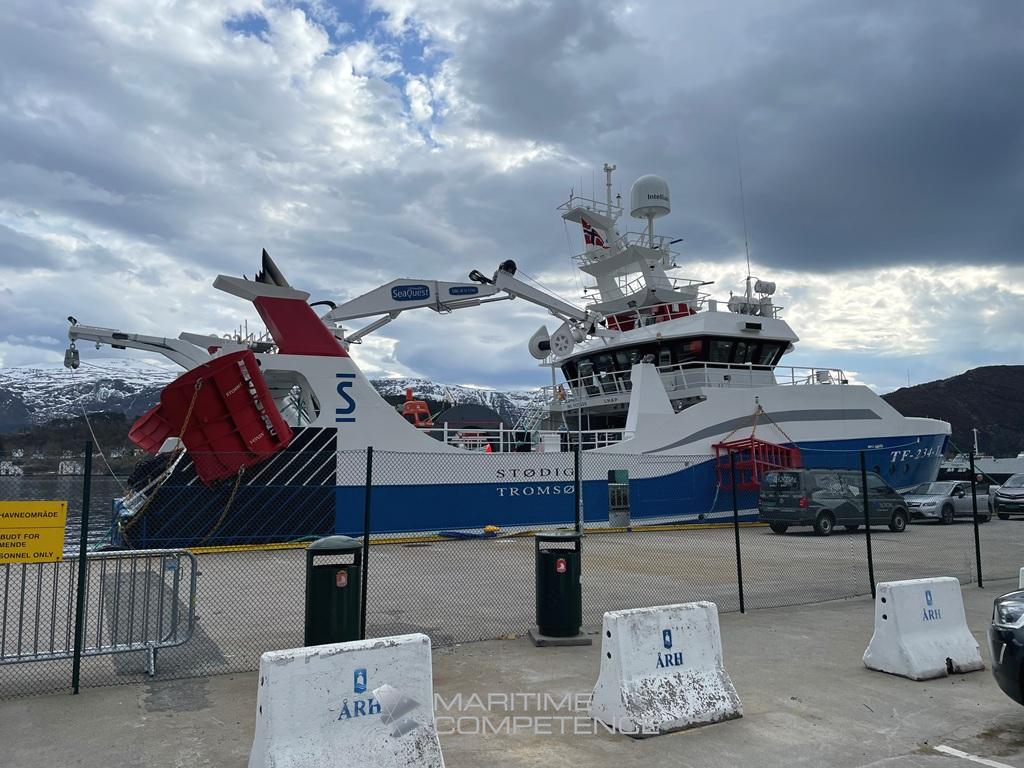

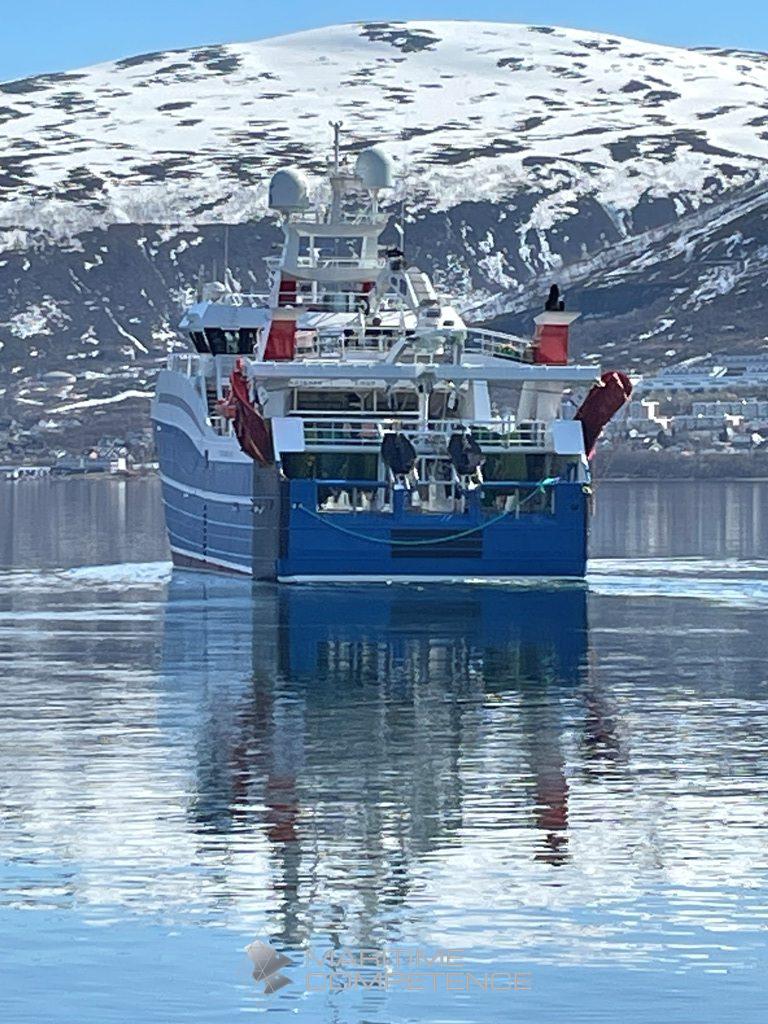

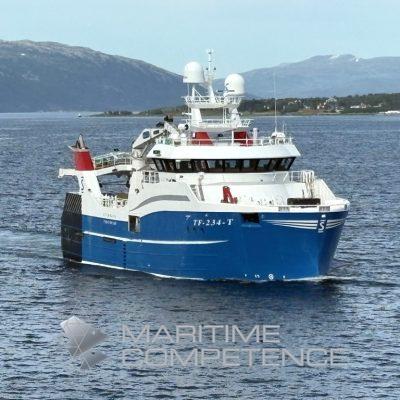

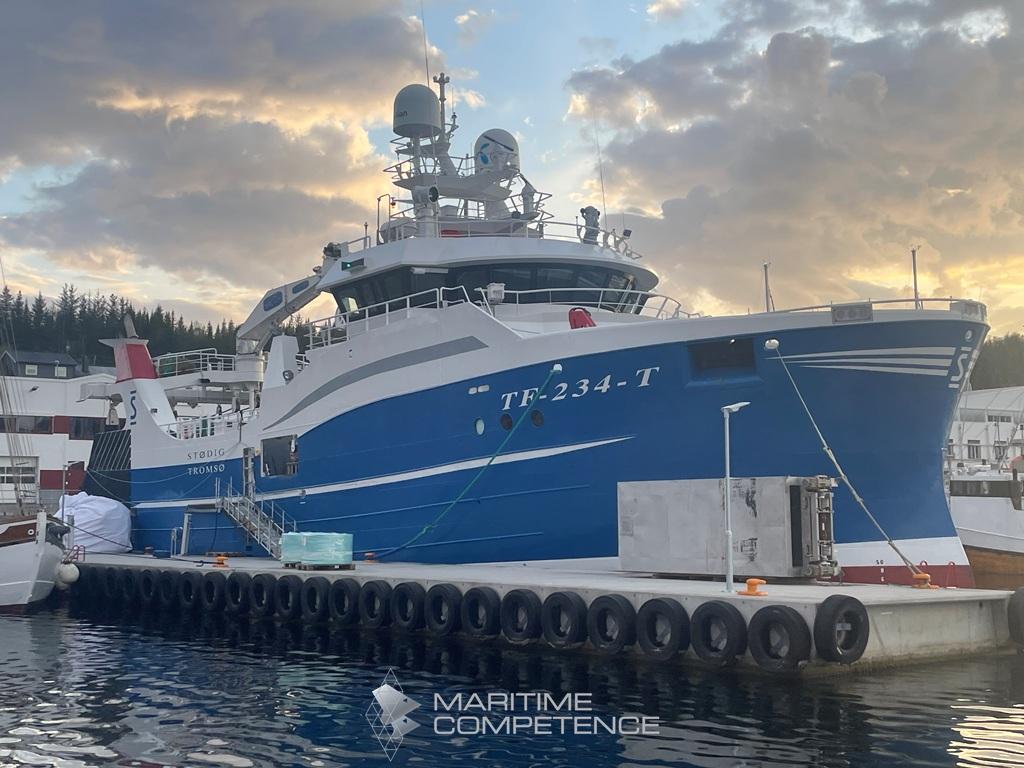

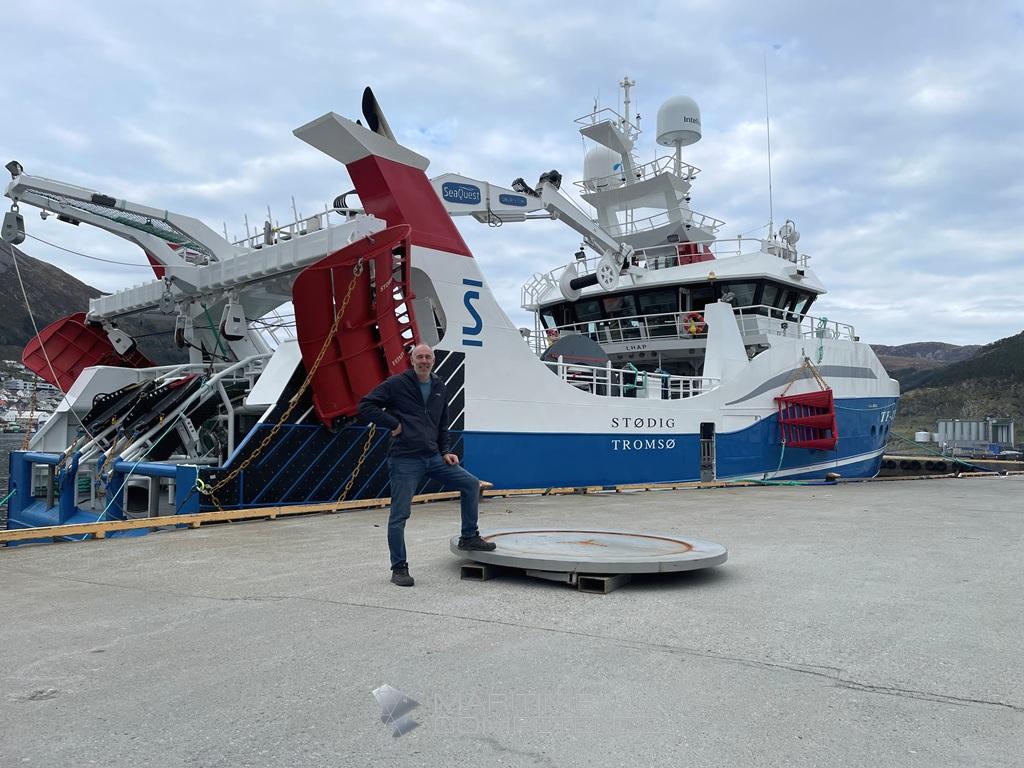

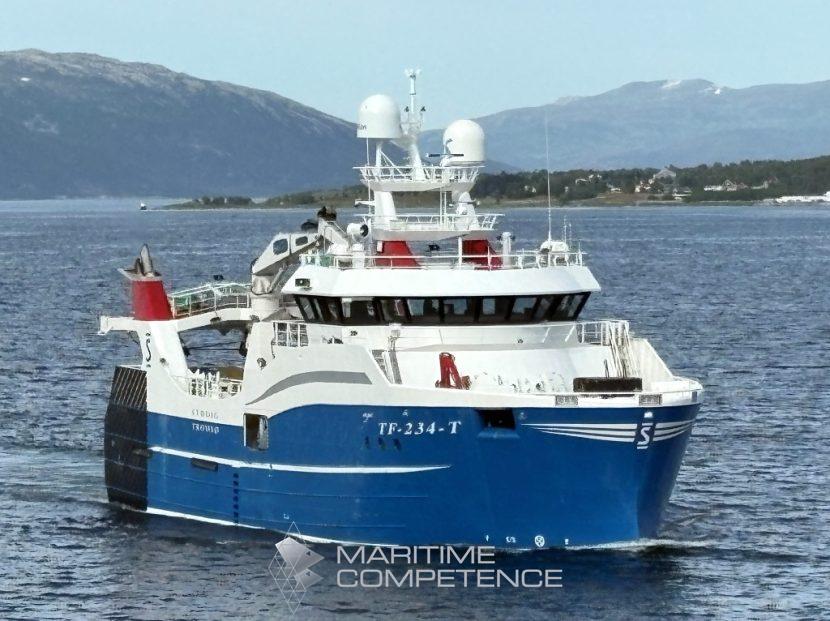

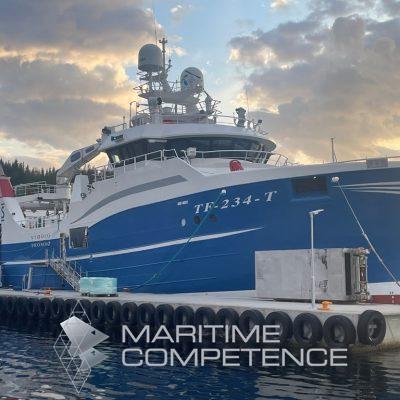

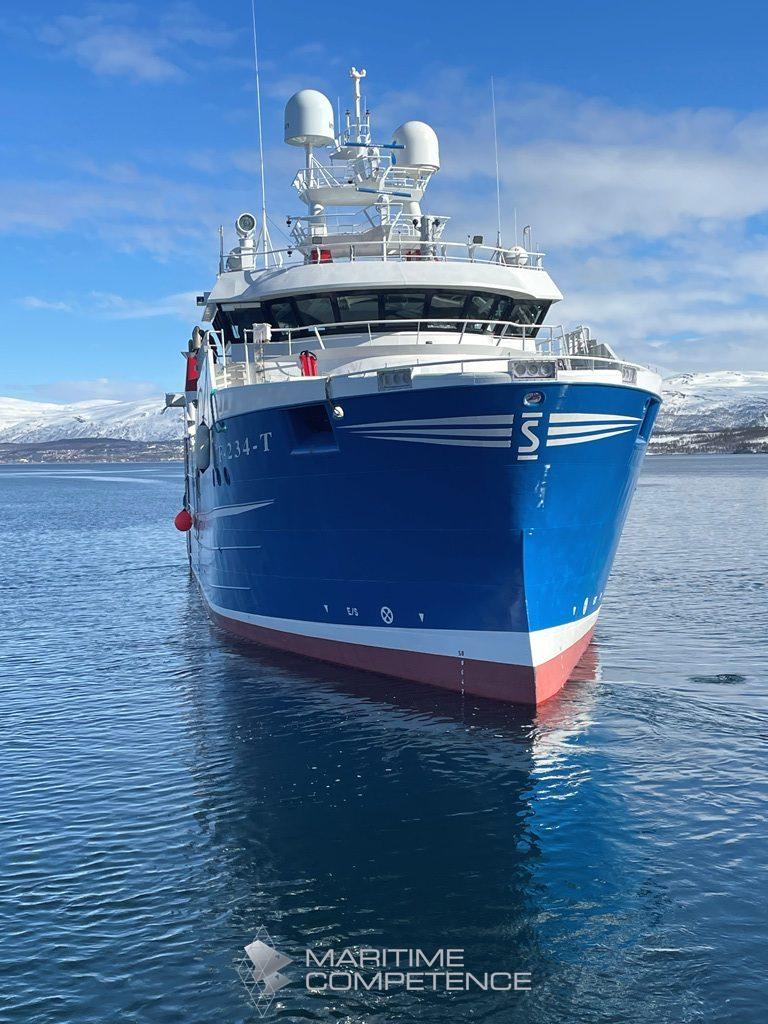

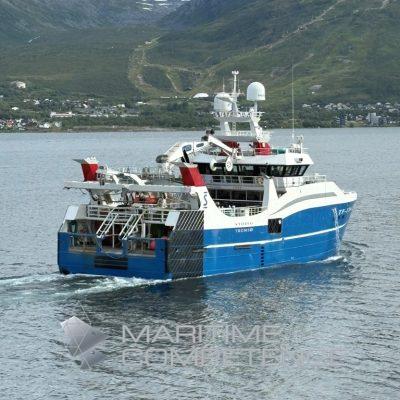

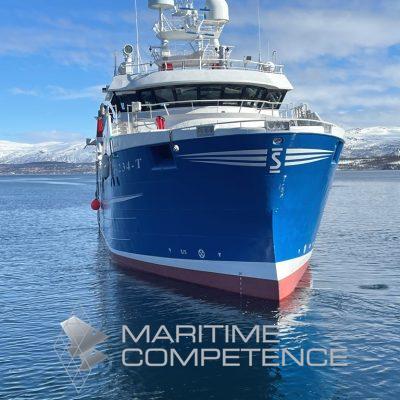

Stødig LHAP
Spesifikasjon
Fartøytype
Fishing vessel
Rigget for
Trawl / Danish seine / Crab
Bygget
2023, Karstensen Skibsværft A/S
Kallesignal
LHAP
Lengde
39.90
Bredde
11.50
Dybde
4.10
Tonnage
752 GT / 261 NT
Klasse/klassedato
DNV-43081 +1A Stern Trawler E0 Ice-C ER(SCR) TMON – Tail shaft monitoring system
Byggemateriale
Steel
Fart og forbruk
200 l/t at 11 knots and 250 l/t with 3x1800 mask shrimp trawl at Barents Sea.
Sertifisert for antall personer
19 persons
Annet Spesifikasjon
IMO NO: 9919228

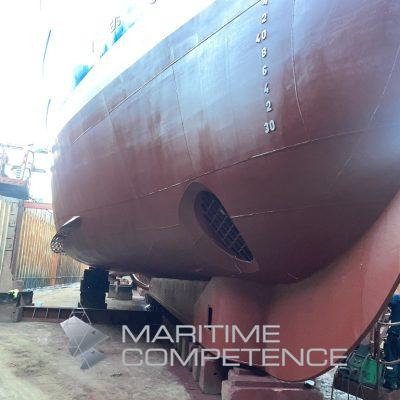

2 mm extra steel around the vessel in water line
ICAF system, current and CU-anode
2 mm extra steel around the vessel in water line
ICAF system, current and CU-anode
Maskineri
Hovedmotor
Yanmar 6EY22AW, 900 rpm
HK
BHP: 1837 hp / 1370 kW
Antall timer, pr dato
13.600 h pr 23.03.2026
Akselgenerator
Stamford, 800 kW – PTO 50-60 hz variable
Gir
Nogva Heimdal HG7
Propellsystem
Propeller cp, diam 3.9 m, Nogva Heimdal K850/4 – 98 rpm

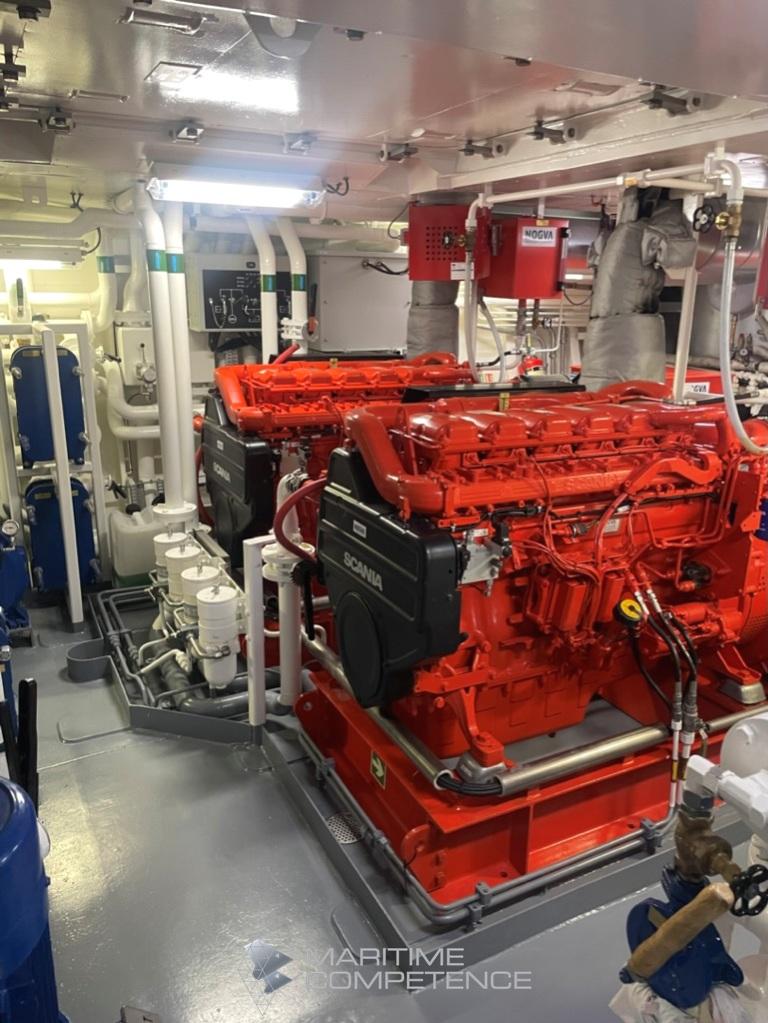

Hjelpemotor 1

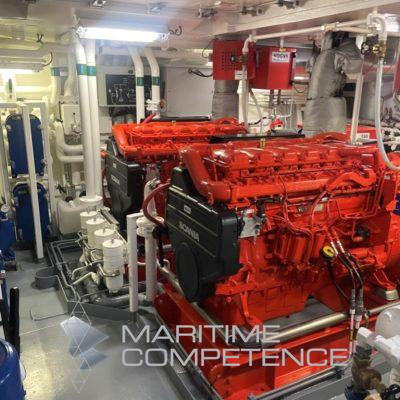

Scania DI13, 400 kW 50/60 hz fixed, 2850 h pr 23.03.2026
Hjelpemotor 2
Scania DI13, 400 kW 50/60 hz fixed, 2850 h pr 23.03.2026

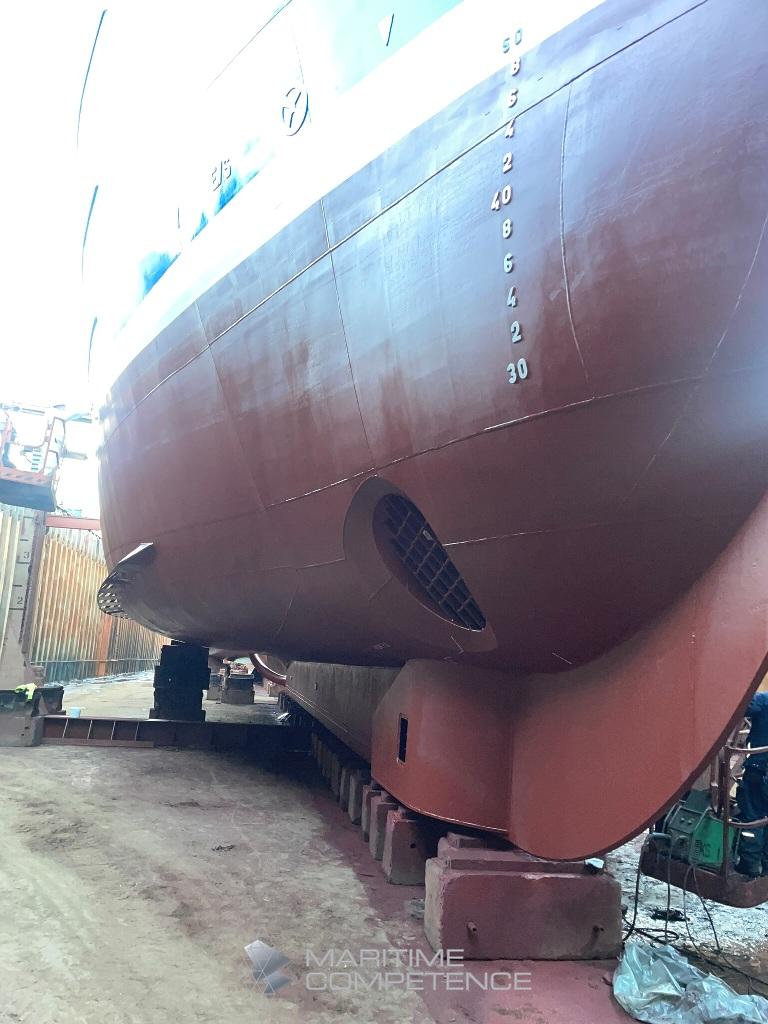

Sidepropell 1
Bow thruster, 260 bhp, Hundested STF5, electric thruster regulated by a frequency converter
Styremaskin
Kongsberg Tenfjord SR622
Pumper
Live fish RSW pump – Alweiler – 2 x 180 m3 pr/h. Hydraulic: 2 x hydraulic pumps to cranes.
Annet Maskineri
Hybrid system between aux engine and main engine to remain 100% power to propeller with 90% power from main engine.
All engines have box coolers.
All engines have box coolers.
Kapasitet
Diesel
220 m3
Ferskvann

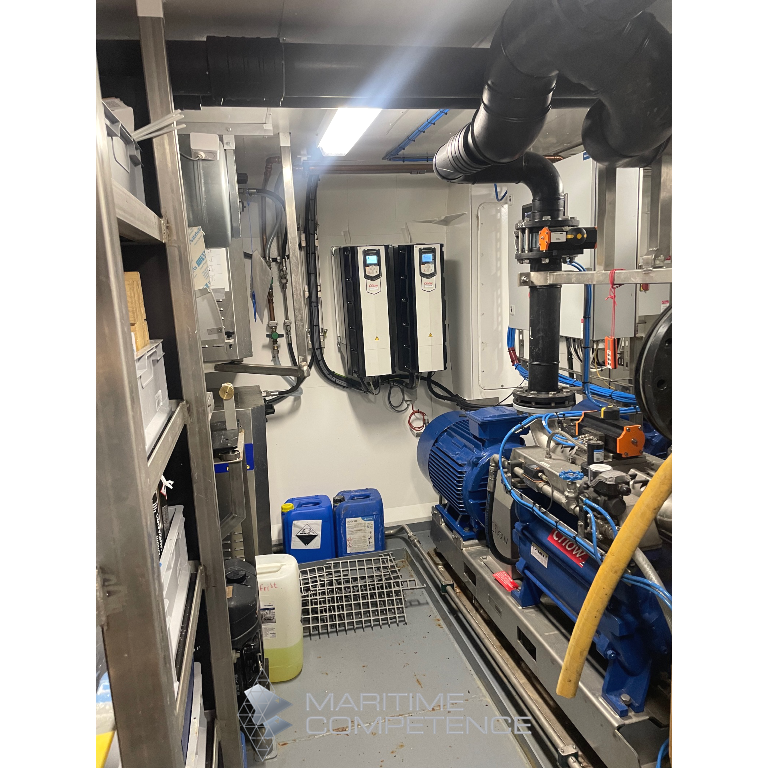

25 m3 – Osmose water maker approx 25 m3 pr/d

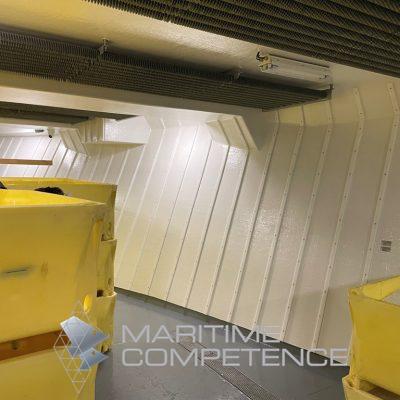

Fryserom
420 m3, PTG Frionordica (ammonia), 250 kW – 220 tons freezed fish / 90-100 tons frozen crab if arranged for

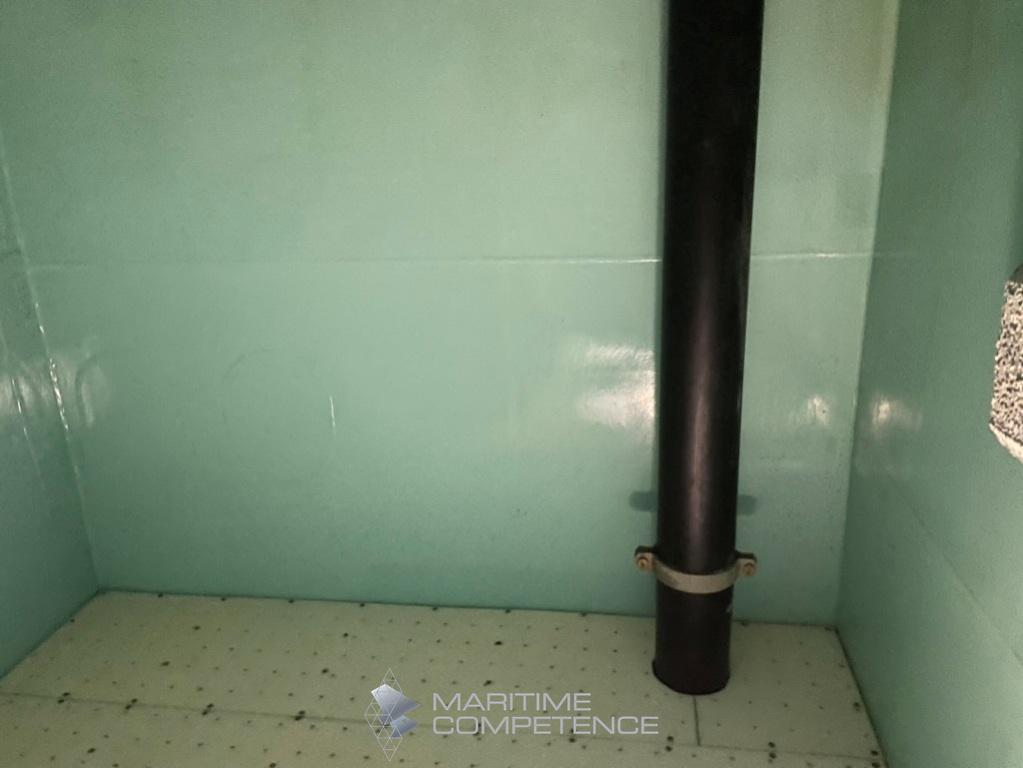

Levendefisk
RSW 2 x 30 m3 + 100 m3 tank placed in freezer room that can be connected to RSW system – 50 tons fresh crab / 70-80 tons fresh white fish. Water change - 360 m3 pr/h connected to RSW system for cooling.
RSW
2 x 30 m3, 150 kW, 200.000 kcal, ammonia - kombi system with two compressors
Fryseri
Ice production: 2,2 tons pr/d
Annen kapasitet
Receiving bins: 2 x 10 m3, stainless steel
Vacuum: Cflow14” with two aggregates
DSI V3 32/100B 4 x plate freezers that produce 35 t pr/d, 100 mm 32 stations
Vacuum: Cflow14” with two aggregates
DSI V3 32/100B 4 x plate freezers that produce 35 t pr/d, 100 mm 32 stations

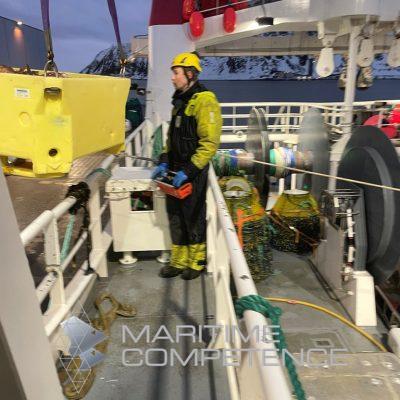

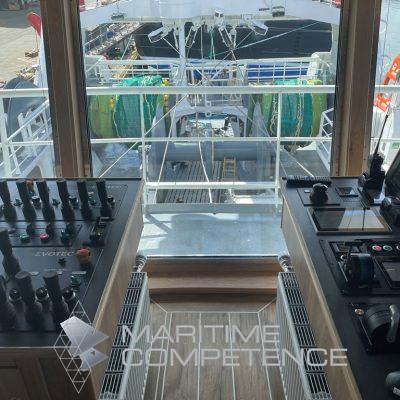

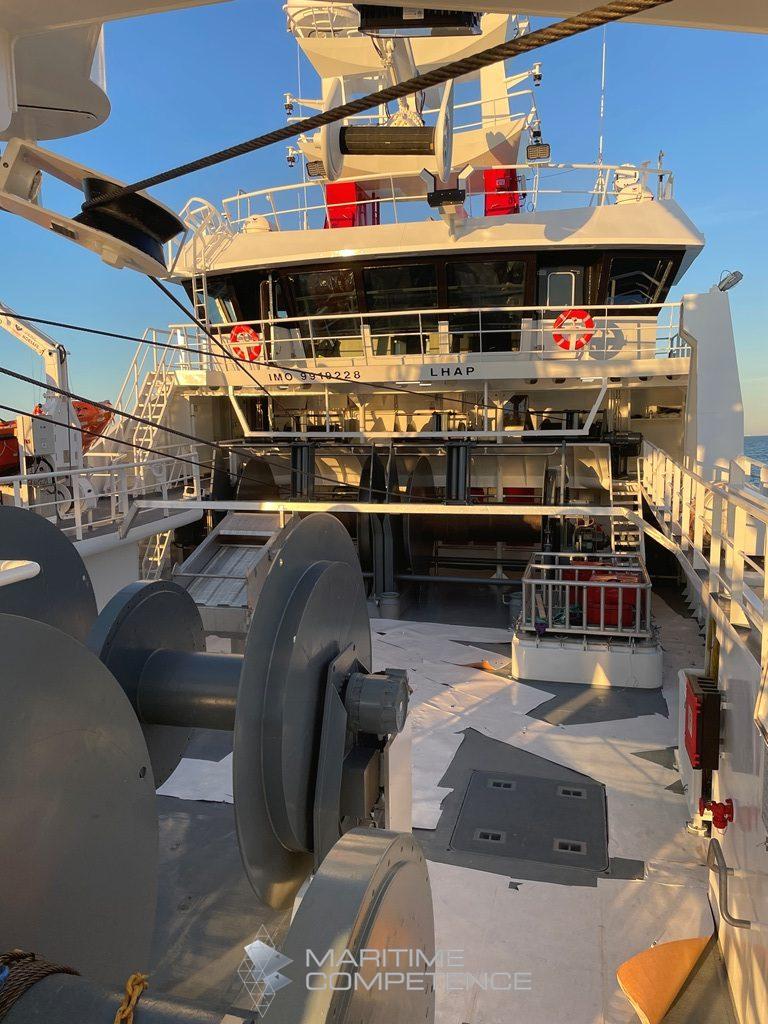

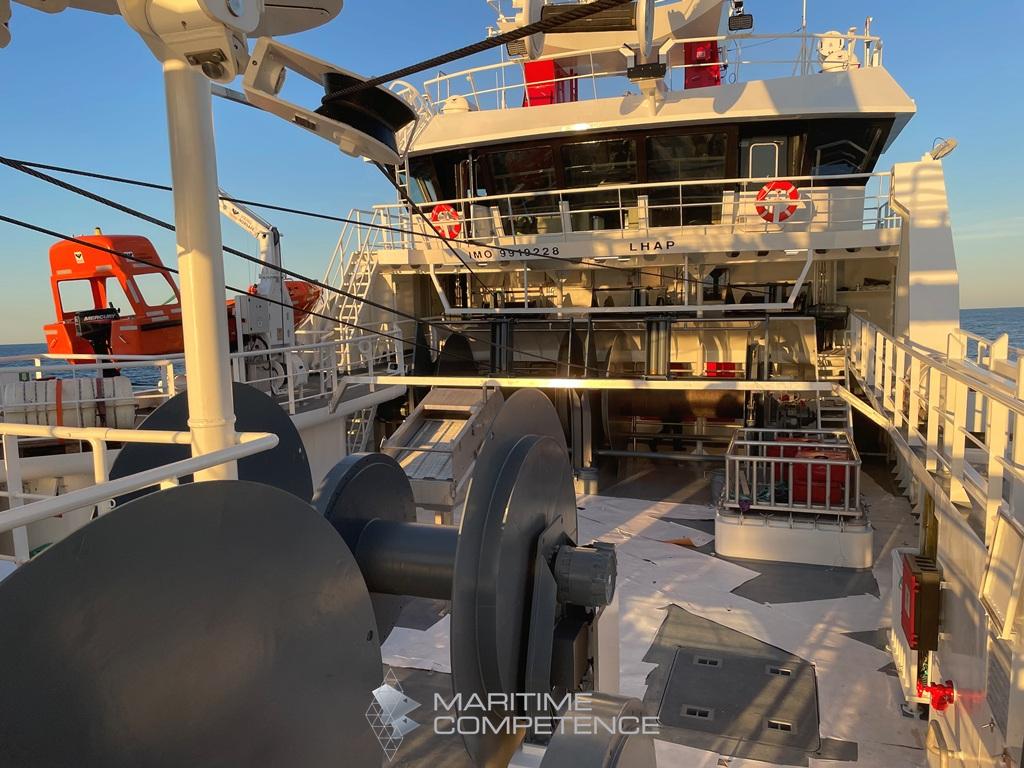

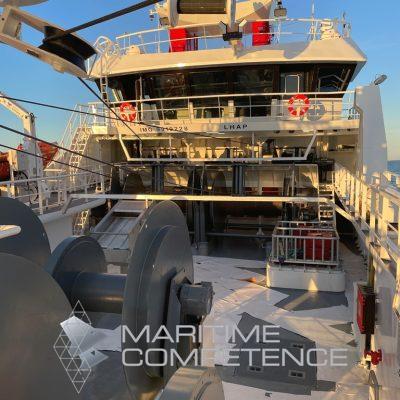

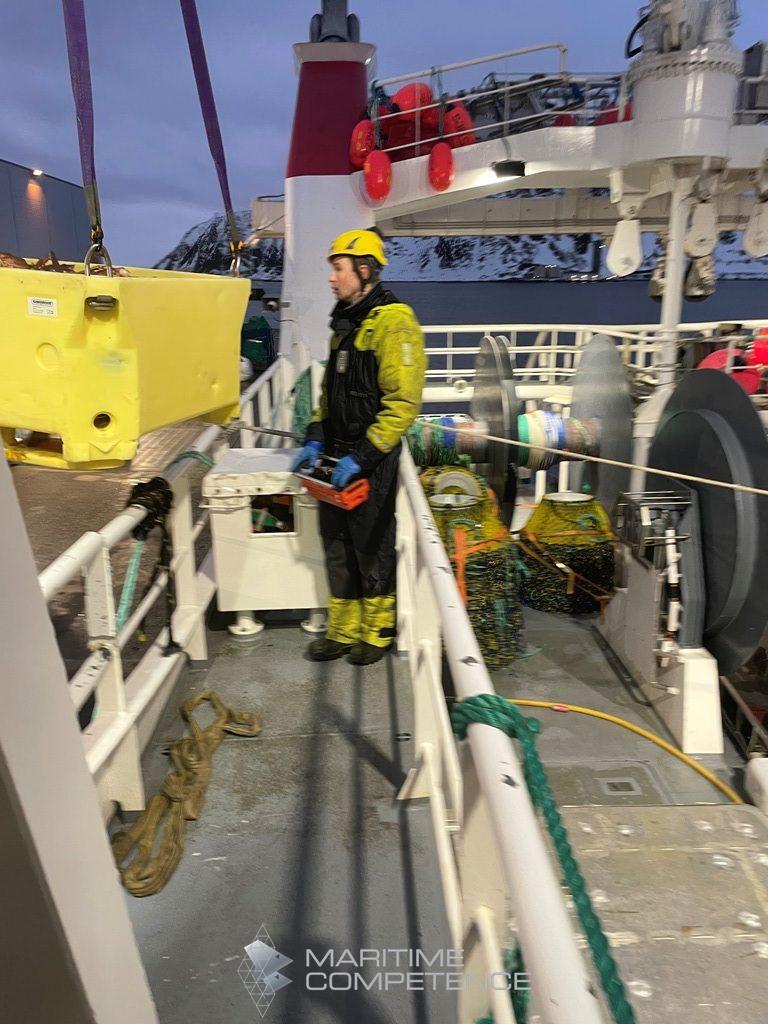

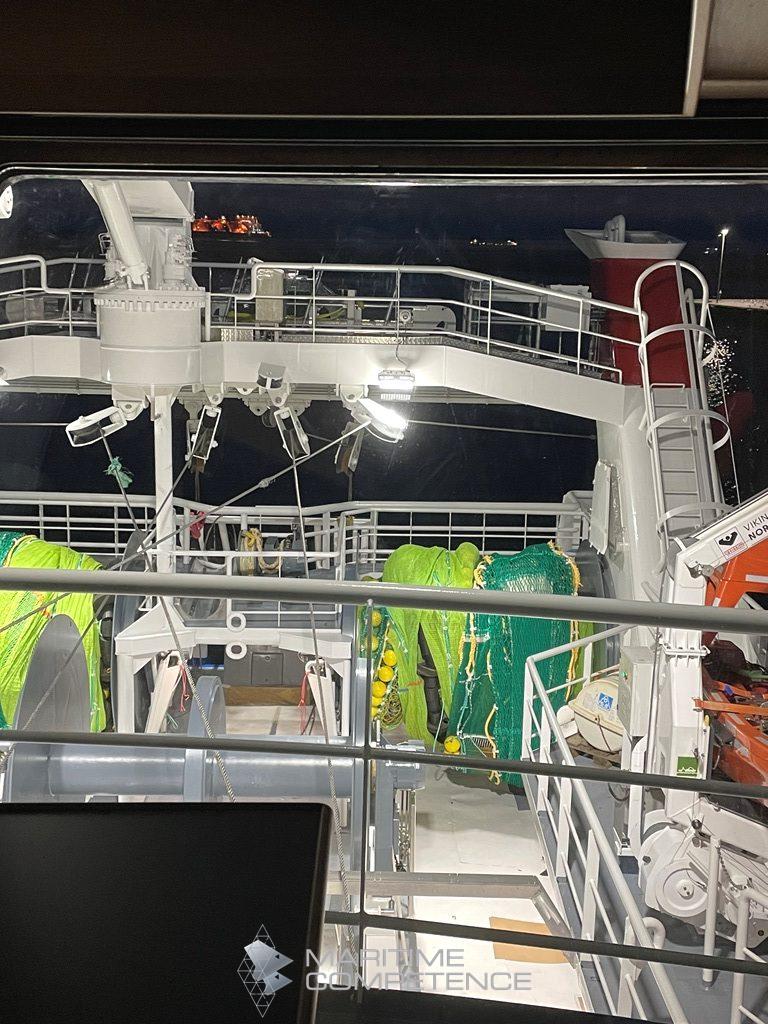

Dekksutstyr
Hovedkrane
TMP 750K
Pumpekrane på dekk
SeaQuest PKB 4
Hovedvinsjer
Entec Evotec: 2 x electric trawl winches at 22 t
Hjelpevinsjer 1
2 x electric winches for danish seine at 24 t each
Hjelpevinsjer 2
Entec Evotec: vacuum pump help winch
Vakuumanlegg
Cflow14” with two aggregates
Sug fra not
From aft 14” hose, attached to live fish tanks

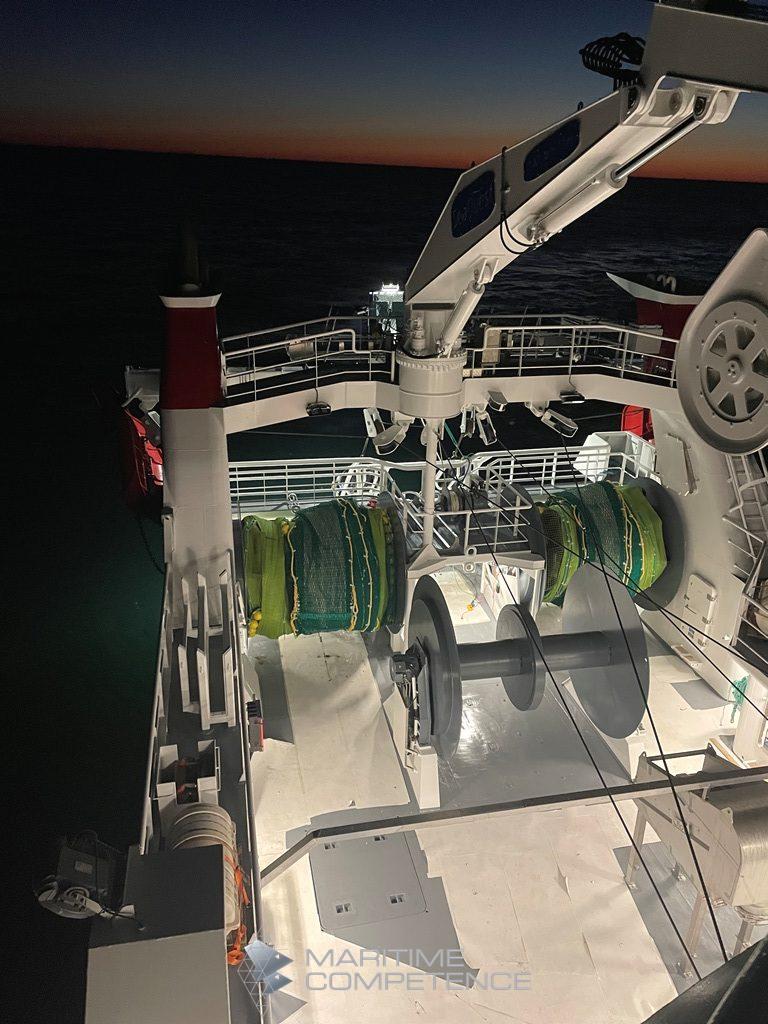

Annet dekksutstyr

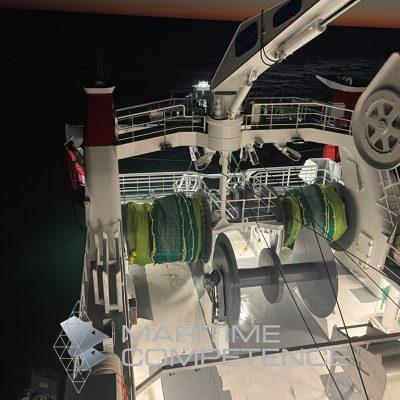

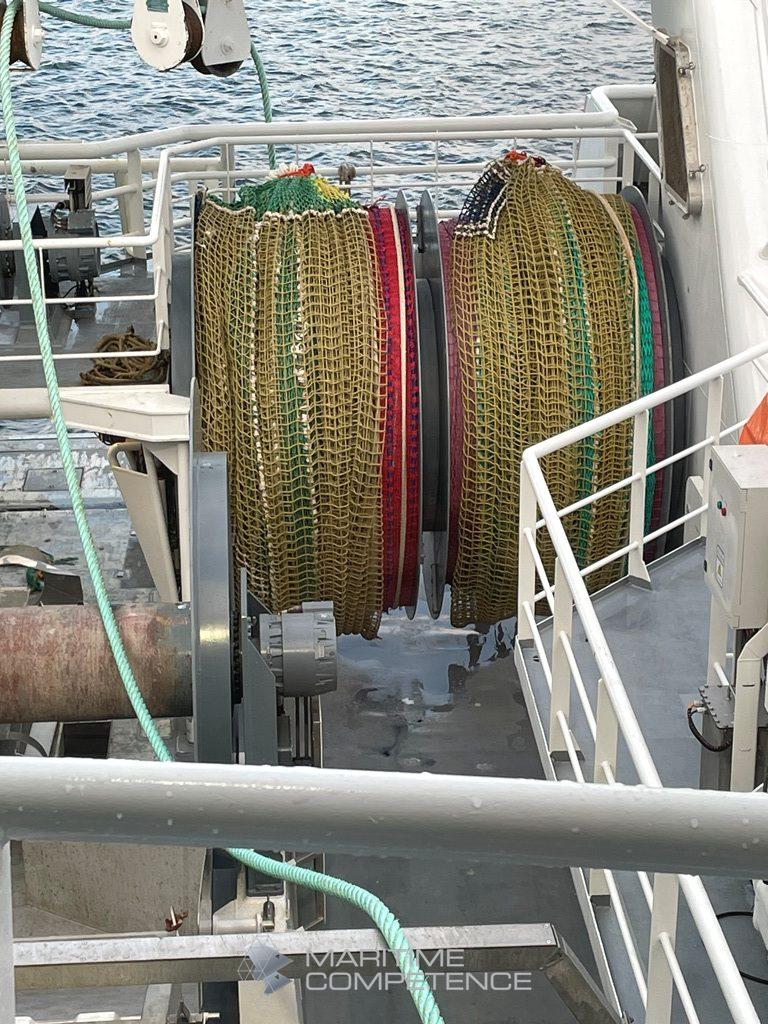

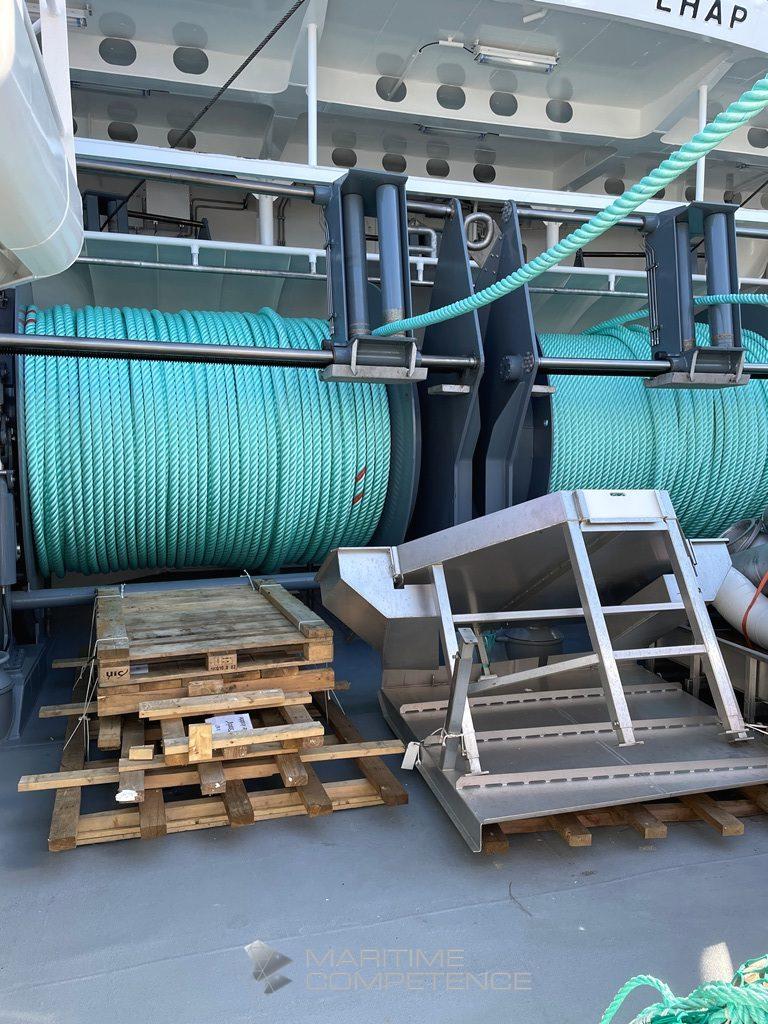

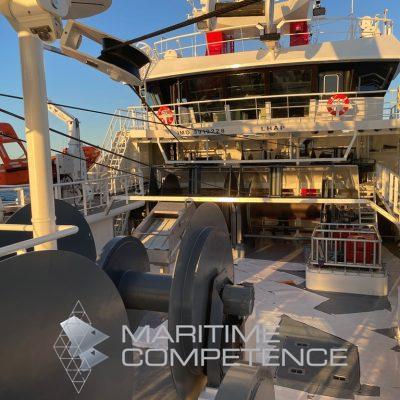

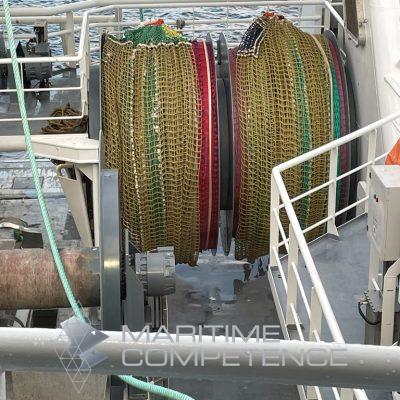

3 x net drums
Adjustable blocks for trawl and danish seine winches in the gallow
Adjustable blocks for trawl and danish seine winches in the gallow

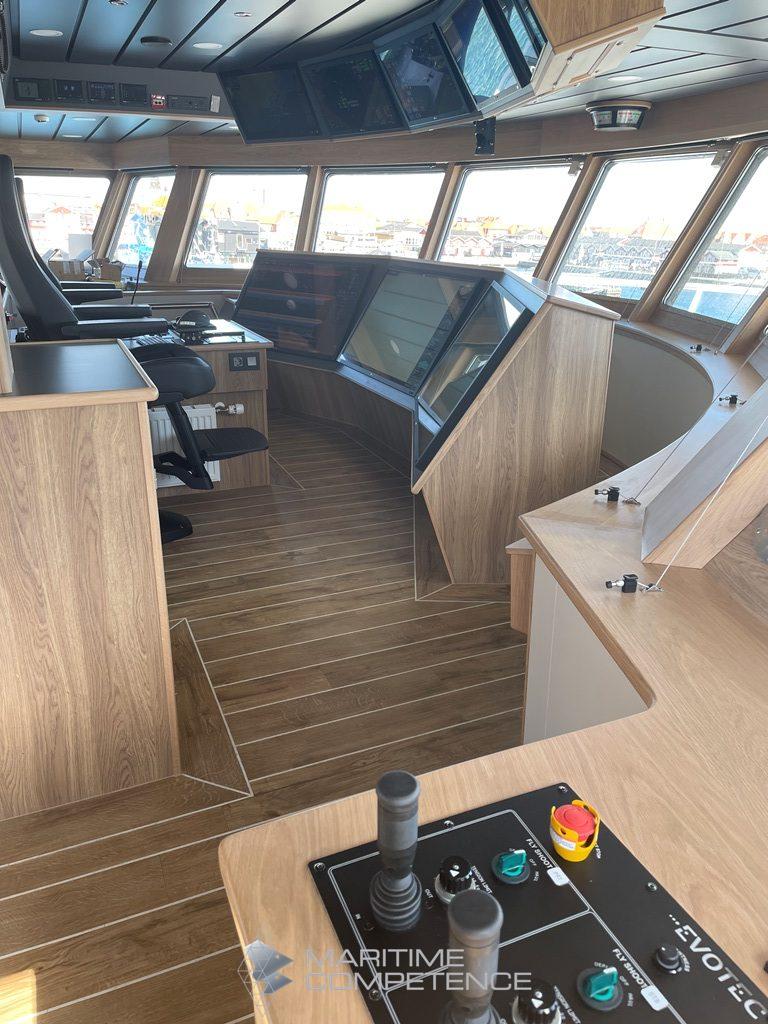

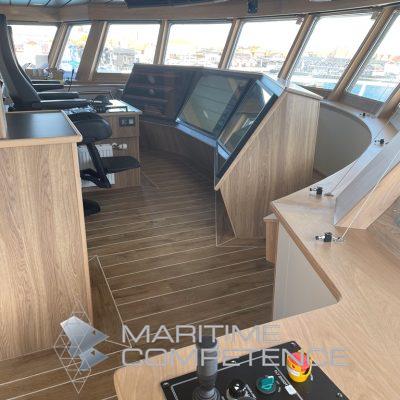

Elektronikk
Ekkolodd 1Simrad ES 80, 120 khz
Ekkolodd 2Simrad EK 80, 333 khz
Ekkolodd 3Furuno DFF3 (28 khz)
Kartplotter 1Olex 3D
Kartplotter 2Time Zero
EcdisFuruno Tecdis
Radar 1Furuno 2238 BB
Radar 2Furuno 2218 BB
GPS 1Sailor
Gyrokompass/satellittkompassJRC sat. compass
AISJRC
VHF 1Sailor 6222
VHF 2Sailor 6222
VHF 3Sailor 6310
NavtexmottakerSailor
IridiumIridium GMDSS
StrømloggFuruno CI-68
AutopilotSimrad AP70
Søkelyskaster 1Polarlight
Søkelyskaster 23 x 3 bow lights / 3 aft lights fitted in 2025
VSAT/InternettStarlink and VSAT
Tilleggsutstyr2 x Scanmar (marport) receiver for trawl instruments
1 x PingMe – underwater position system
4 x bottom installation for Notus + compueter
Gill wind measurement
2 x CCTV
Screens: 3 x 55 + 6 x 32 + 6 x24 + 1x 48
Scantrål trålsystem /evotec/notus/scanmar
1 x PingMe – underwater position system
4 x bottom installation for Notus + compueter
Gill wind measurement
2 x CCTV
Screens: 3 x 55 + 6 x 32 + 6 x24 + 1x 48
Scantrål trålsystem /evotec/notus/scanmar
Sikkerhetsutstyr
I henhold til klasseYes
Fabrikk
Antall sløyemaskinerBaader 444 and 444S. KM Fish mark 7 - The machine performs gutting only and does not cut/remove the head
PlatefryserePlate freezers, 4x 34 t / 24 h, DSI V3 32/100B
Annet fabrikkManuell gutting line with hydraulic lift

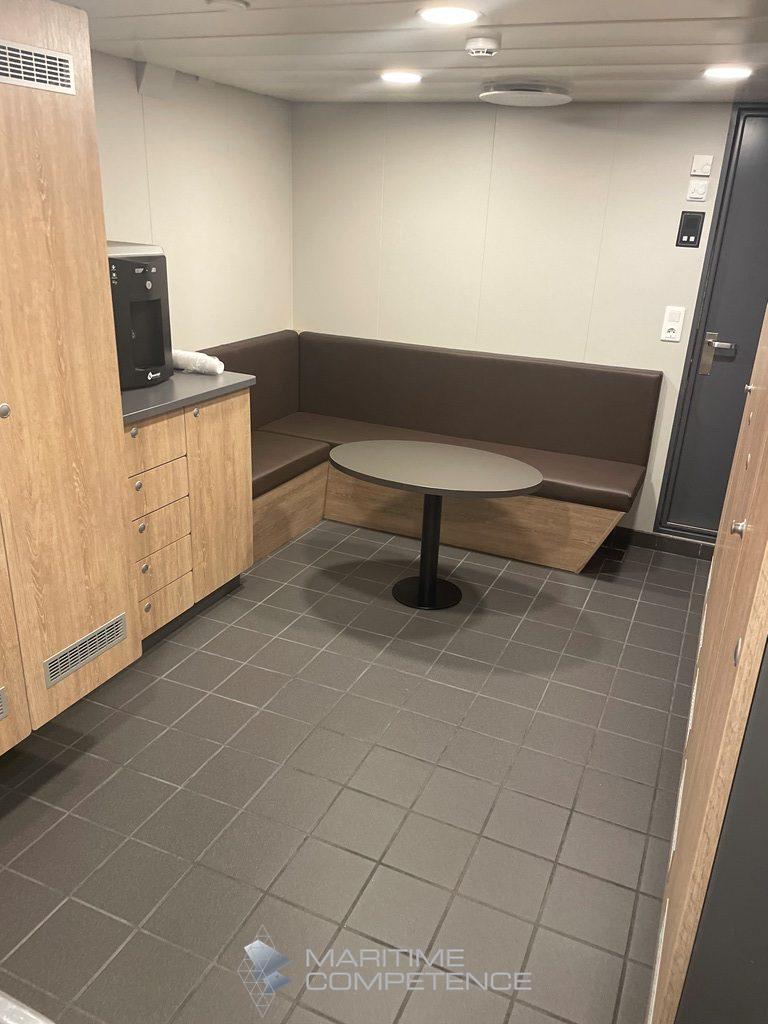

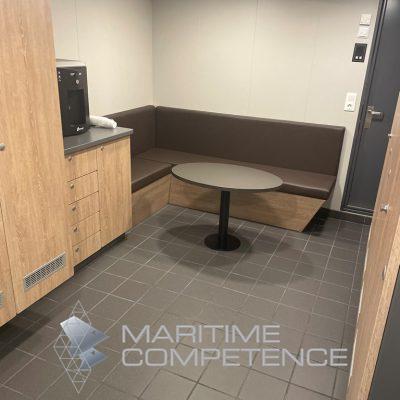

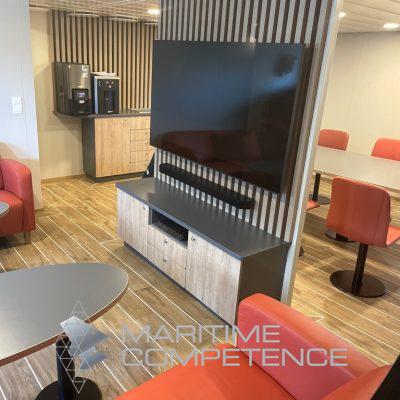

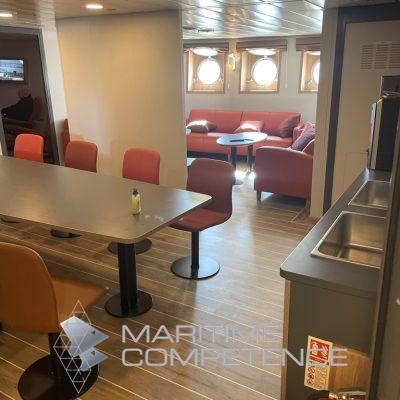

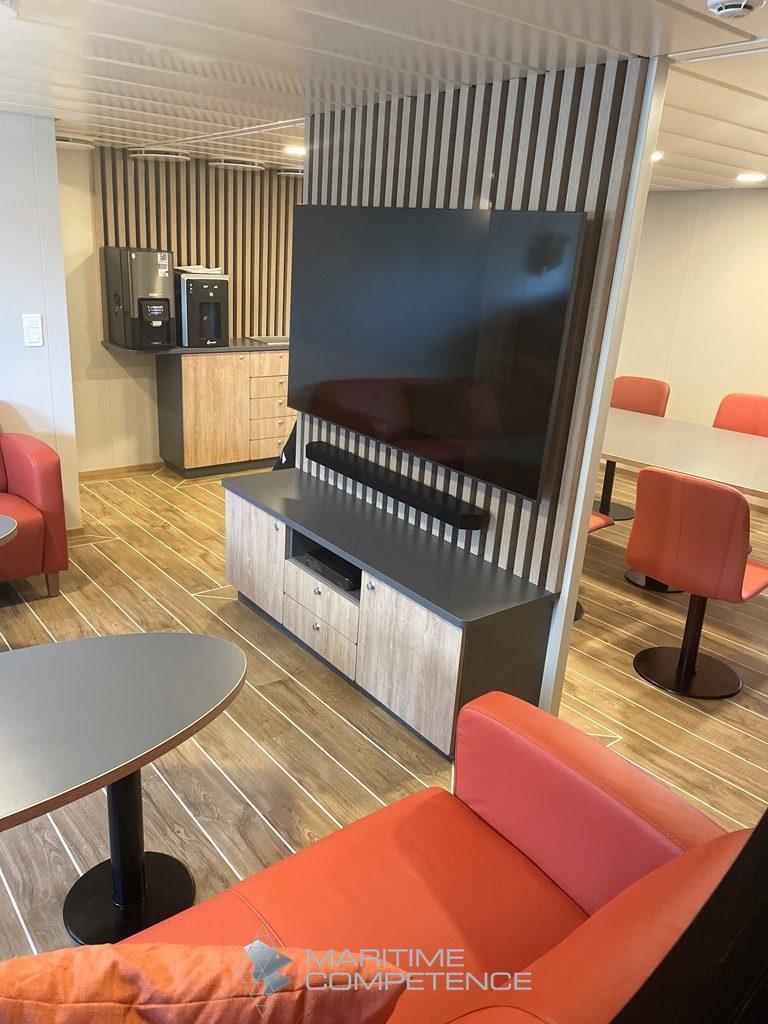

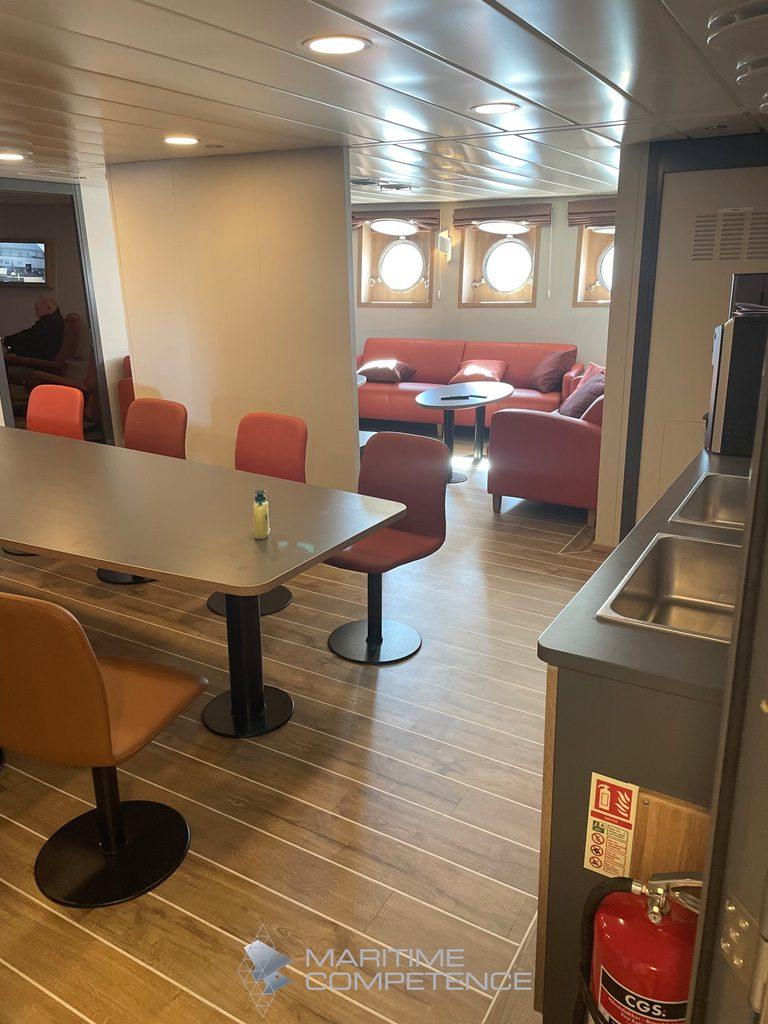

Innredning
Lugarer11 cabins + hospital cabin (7 double and 4 single cabins + hospital)
Annen innredning12 persons for crab fishing / 12 persons for frozen fish
Diverse opplysninger

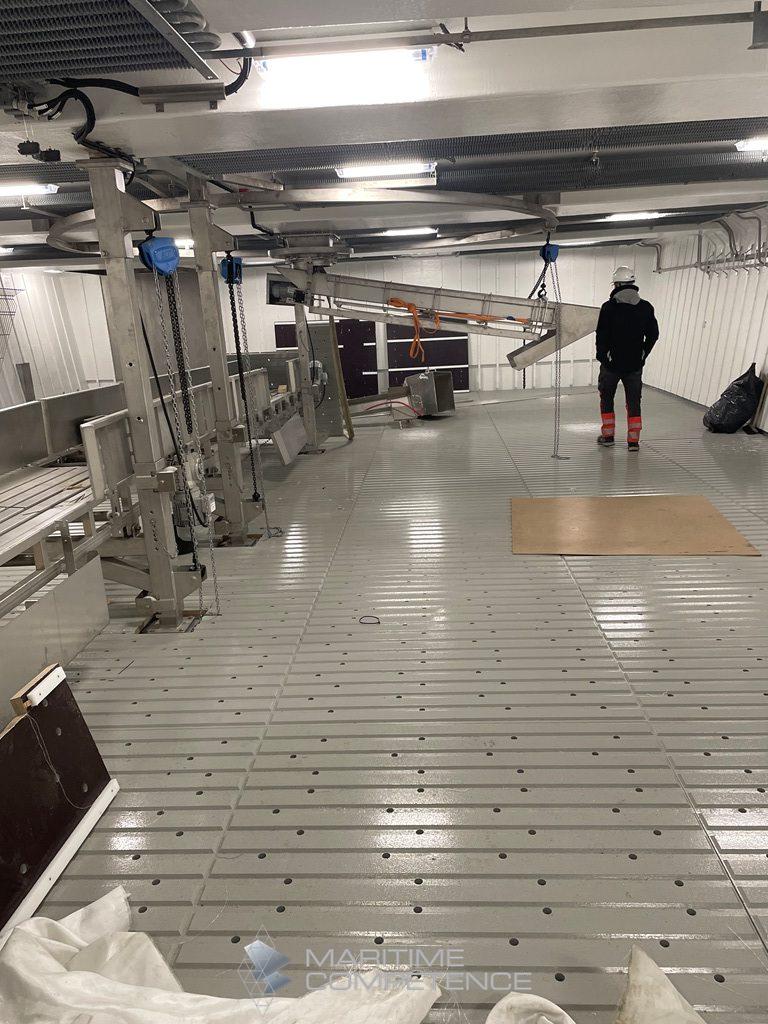

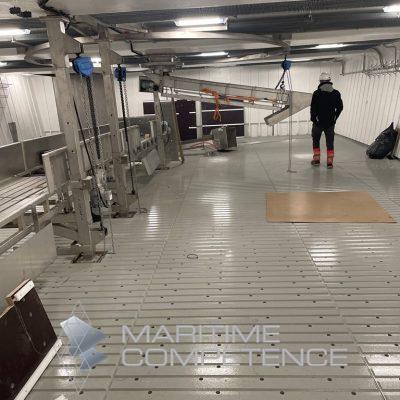

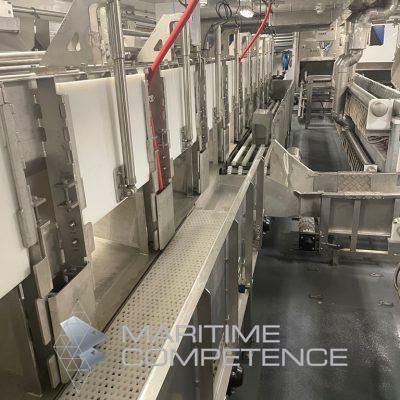

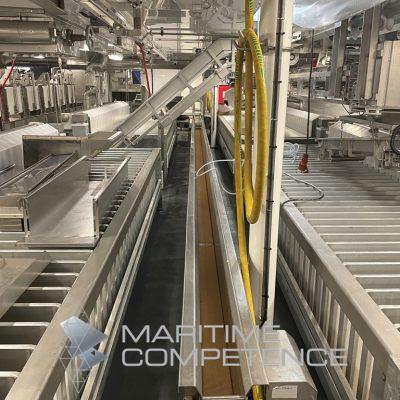

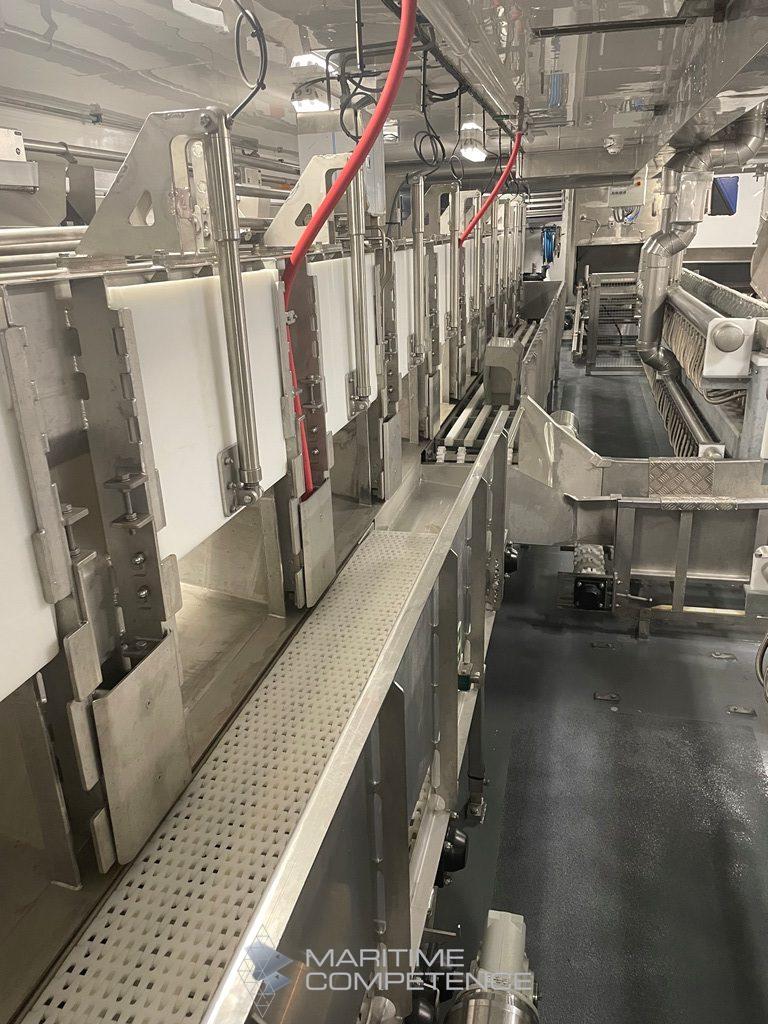

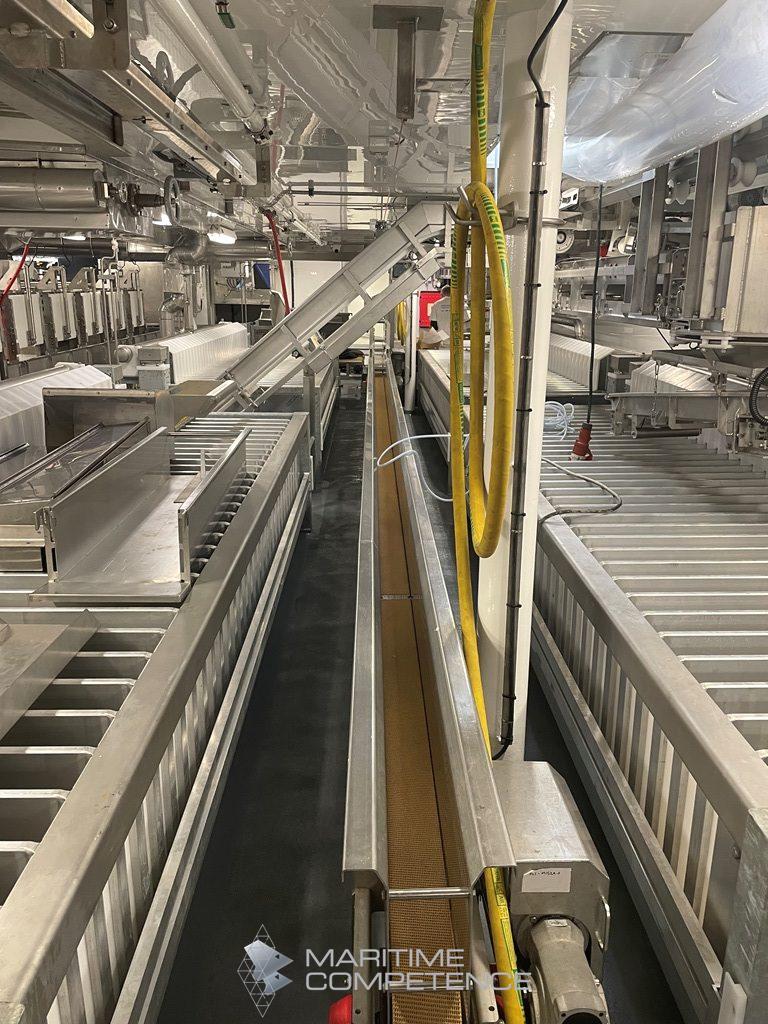

Processing & Freezing System
Fish Processing:
2 × Baader 444 (444 / 444S small fish processing machines)
1 × Marel grader with 10 buffer bins for sorting by species and weight
Fish is automatically distributed into buffer bins prior to freezing
Freezing:
Plate freezer, approx. 3.5 hours freezing time
After freezing:
Manual packing and labeling
Wolf bag gluing/sealing machine
Elevator system to freezer hold

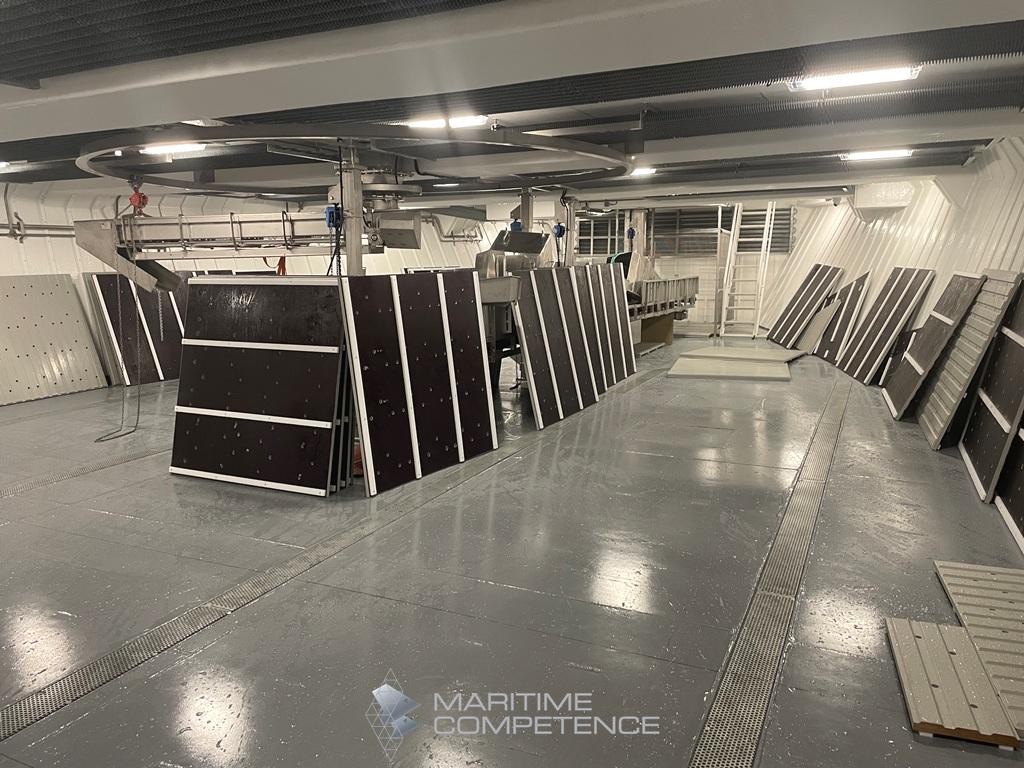

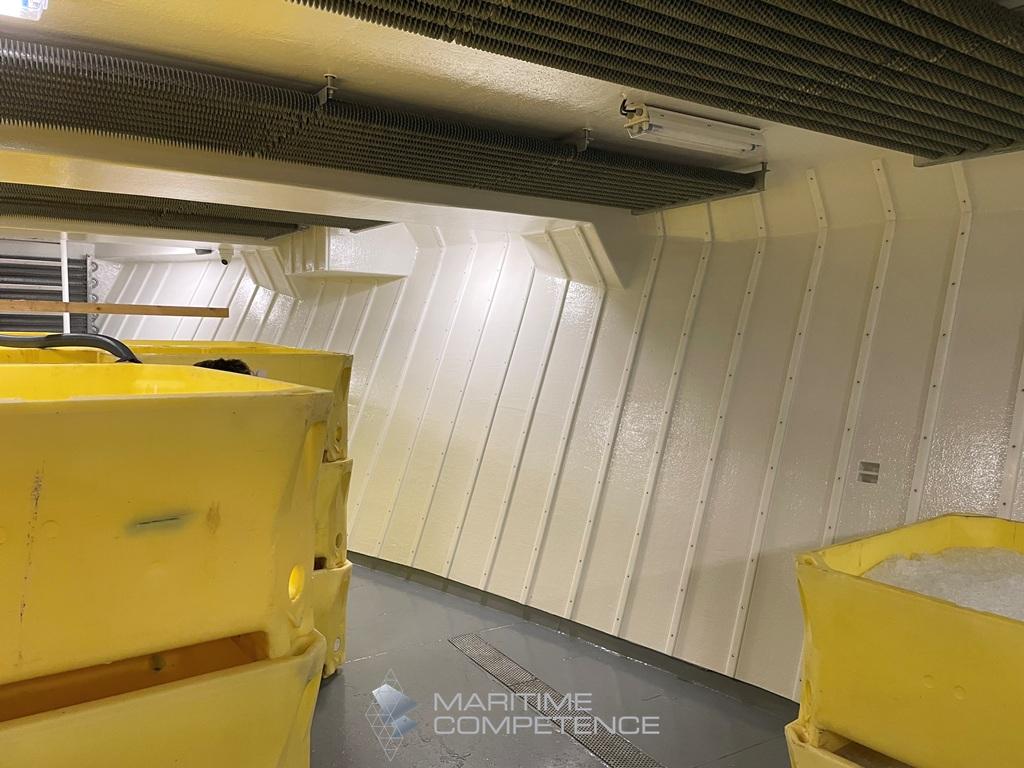

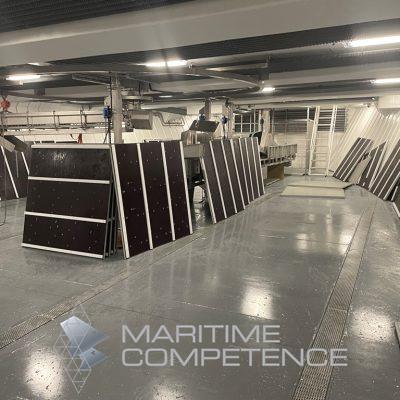

Freezer Storage:
1 × freezer room, approx. 420 m3 capacity
Storage capacity: approx. 220 tonnes frozen fish
Handling & Discharge
Live Crab (Fresh):
Water is drained from tanks prior to handling
Manual sorting/handling capacity: approx. 60,000–70,000 crabs
Frozen fish:
Discharged by crane

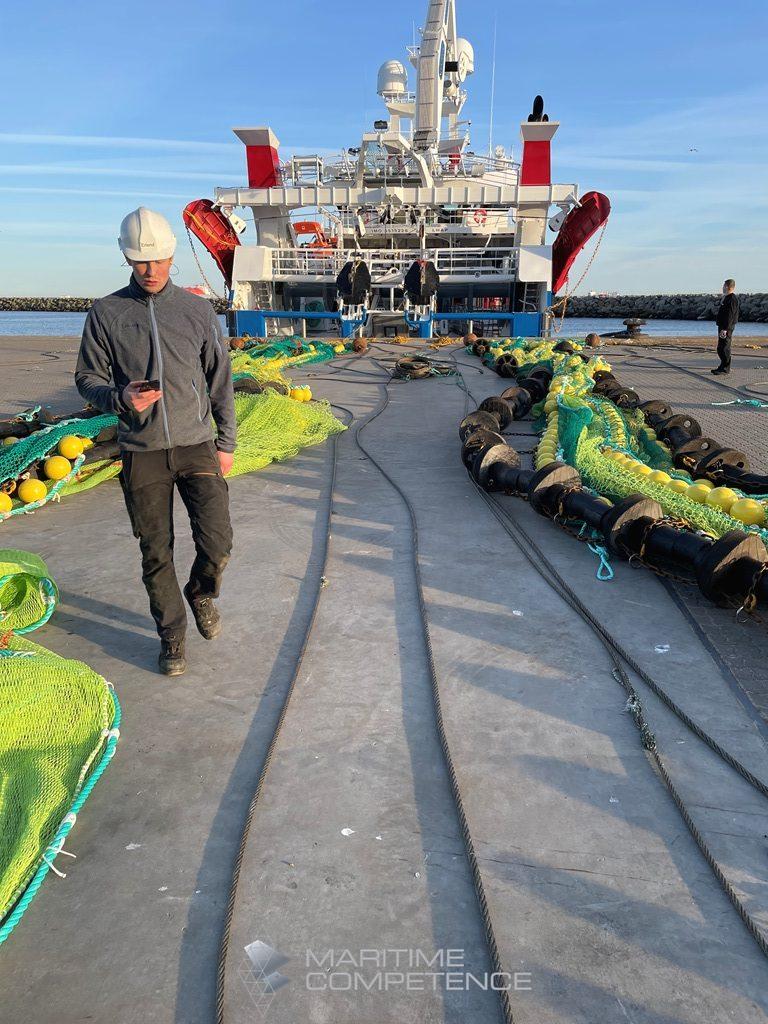

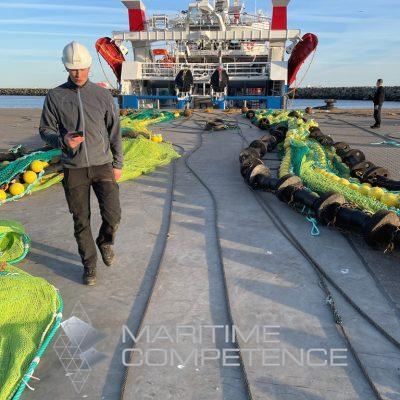

Deck Equipment & Fishing Gear
Double Trawl Setup:
1 trawl door per winch (2 doors total)
Trawl doors:
Approx. 3,100 kg each
Type: Vonin Refa doors
Other doors required for pelagic operations
Shrimp Fishing:
Configured for triple trawl (shrimp)
Fish Processing:
2 × Baader 444 (444 / 444S small fish processing machines)
1 × Marel grader with 10 buffer bins for sorting by species and weight
Fish is automatically distributed into buffer bins prior to freezing
Freezing:
Plate freezer, approx. 3.5 hours freezing time
After freezing:
Manual packing and labeling
Wolf bag gluing/sealing machine
Elevator system to freezer hold
Freezer Storage:
1 × freezer room, approx. 420 m3 capacity
Storage capacity: approx. 220 tonnes frozen fish
Handling & Discharge
Live Crab (Fresh):
Water is drained from tanks prior to handling
Manual sorting/handling capacity: approx. 60,000–70,000 crabs
Frozen fish:
Discharged by crane
Deck Equipment & Fishing Gear
Double Trawl Setup:
1 trawl door per winch (2 doors total)
Trawl doors:
Approx. 3,100 kg each
Type: Vonin Refa doors
Other doors required for pelagic operations
Shrimp Fishing:
Configured for triple trawl (shrimp)
Prisantydning
Please contact our office
Detaljene antas korrekte men kan ikke garanteres
